summary

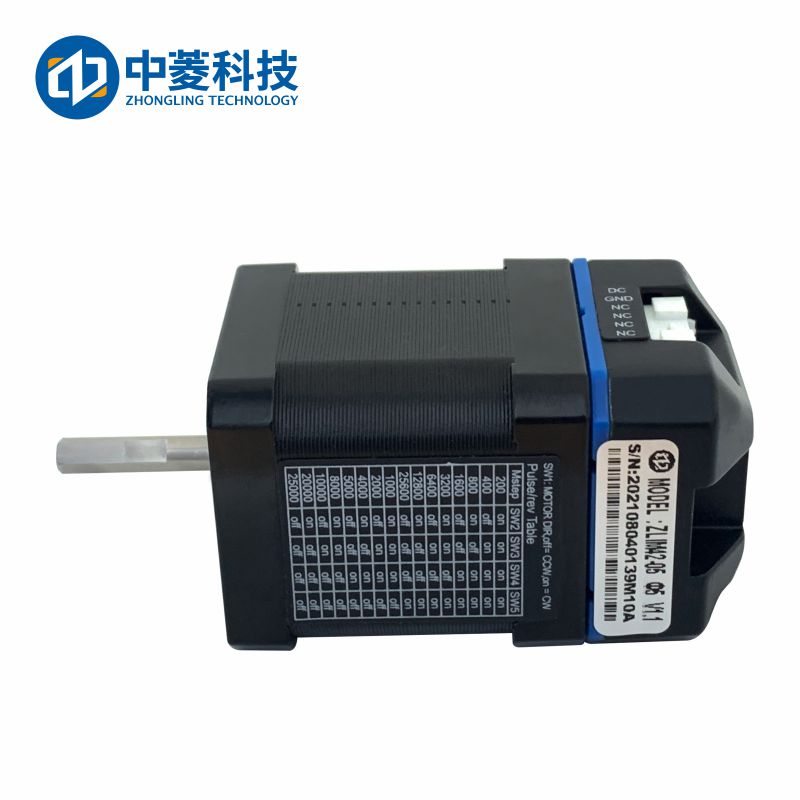

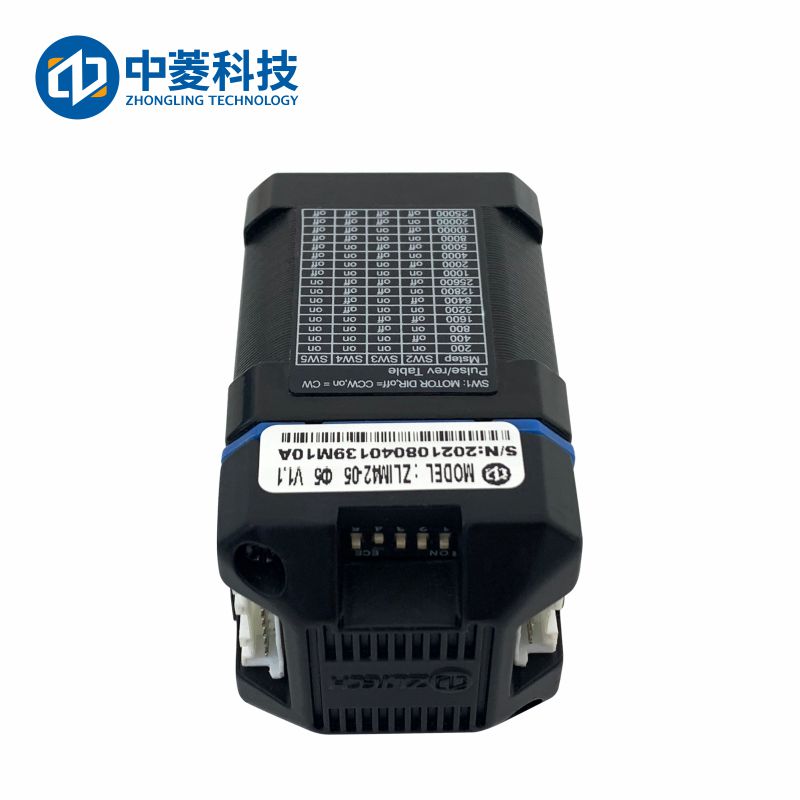

ZLIM42-P is a high-performance digital integrated drive two-phase hybrid open-loop motor, with a simple system structure and high integration. This series of integrated open-loop stepper motors adopts the latest 32-bit motor control dedicated DSP chip, and uses advanced digital filtering control technology, resonance vibration suppression technology, and precision current control technology to achieve precise and smooth operation of two-phase hybrid stepper motors. This series of integrated open-loop stepper motors has the characteristics of high torque output, low noise, low vibration, and low heat generation, making them particularly suitable for electronic processing equipment, laser processing, medical, and small CNC equipment.

characteristic

Ultra low vibration and low noise;

Maximum 512 microstep subdivision, minimum unit 1;

Input voltage: 24VDC;

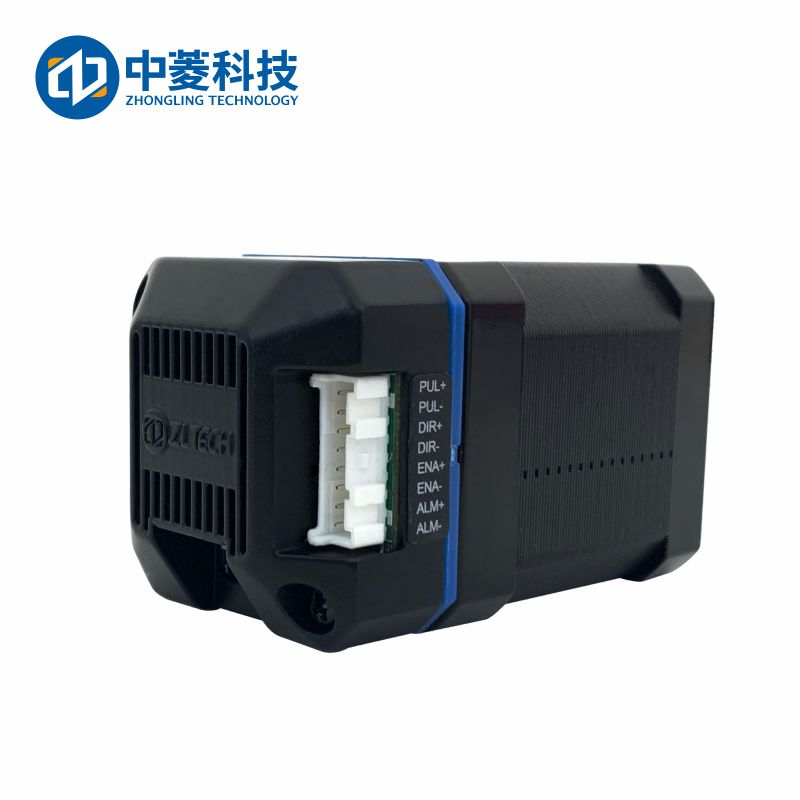

3 isolated differential signal input ports: 5VDC;

1. Isolation output port: alarm output, OC;

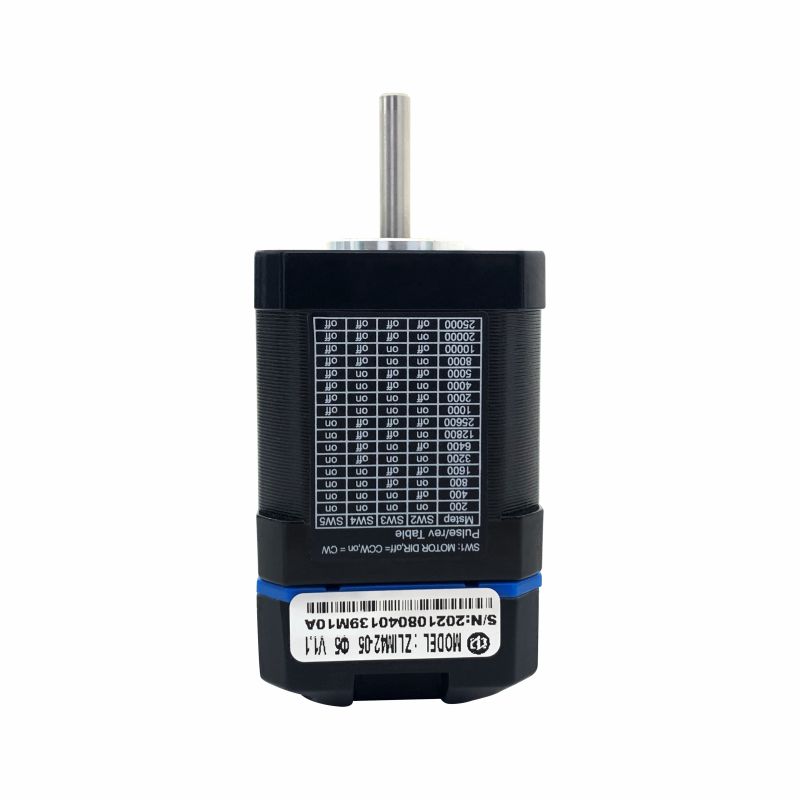

3 dial code switch selection, 8-level subdivision, default (4-512), customizable according to customers;

Automatic flow reduction function: 50%;

Equipped with protection functions such as overvoltage, overcurrent, and over tolerance;

application area

Suitable for various small automation equipment and instruments, such as pneumatic marking machines, labeling machines, cutting machines, laser marking machines, plotters, small engraving machines, CNC machine tools, handling devices, etc. The application effect is particularly good in devices with low noise, low vibration, high stability, and high precision that users expect.
