summary

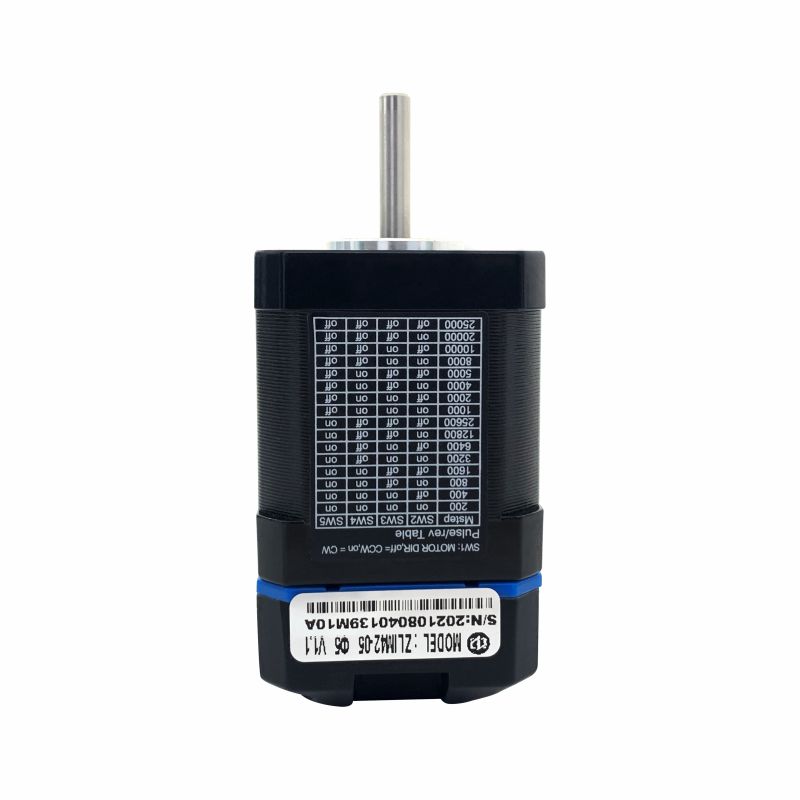

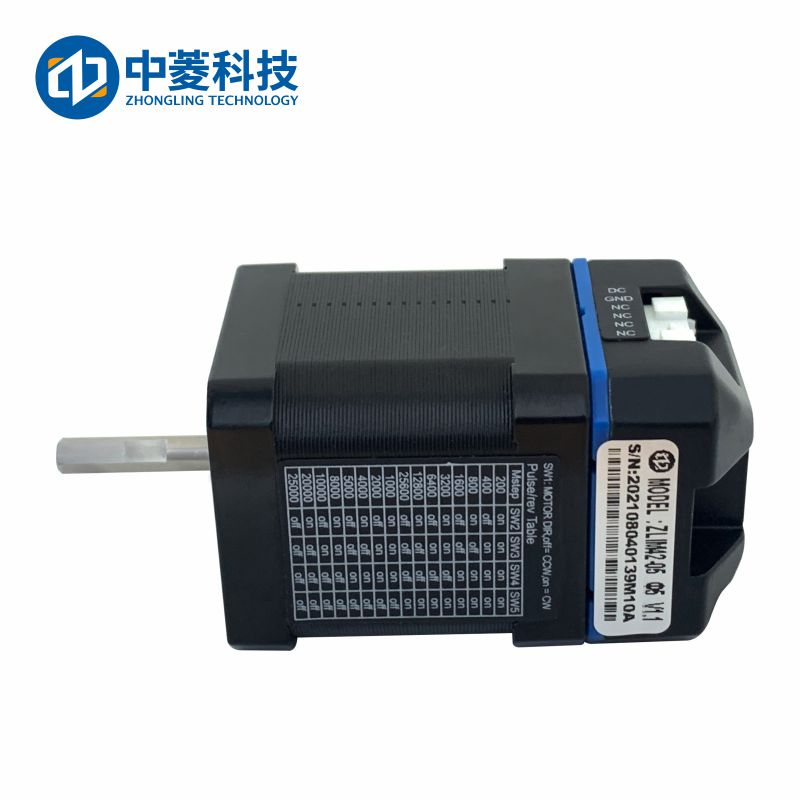

ZLIM42-C is a high-performance digital integrated drive integrated two-phase hybrid open-loop motor, with a simple system structure and high integration, and added bus communication and single axis controller functions. The CAN bus interface is used for bus communication, and the protocol supports the CiA301 and CiA402 sub protocols of the CANopen protocol.

characteristic

Ultra low vibration and low noise;

Adopting CAN bus communication, supporting the CiA301 and CiA402 sub protocols of CANopen protocol, capable of mounting up to 16 devices;

The default baud rate for CAN bus communication is 500Kbps;

Support working modes such as position control, speed control, and return to origin.

Users can set parameters such as starting speed, acceleration time, deceleration time, maximum speed, and total pulse number through the bus to achieve trapezoidal acceleration and deceleration position control function, with functions such as returning to the origin.

Users can set the current, subdivision, and lock current size through the bus; Control the start and stop of the motor and query the real-time operation status of the motor.

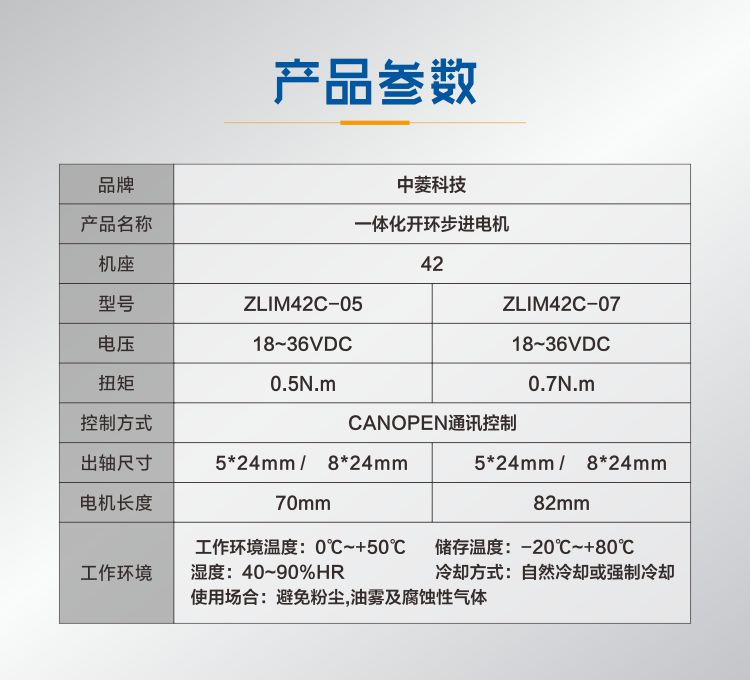

Input voltage: 24VDC;

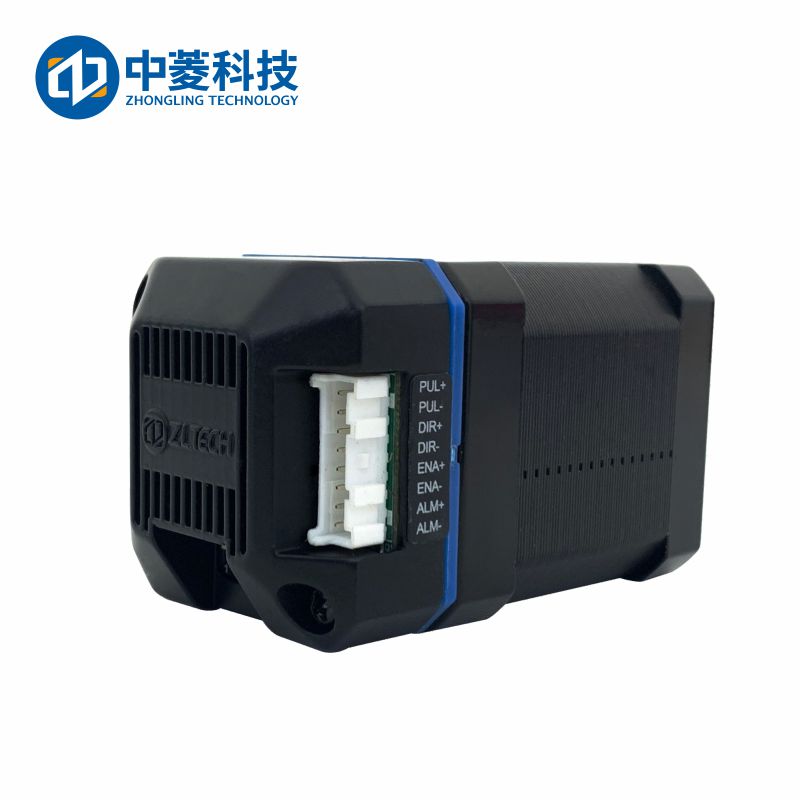

4 isolated signal input ports, programmable, capable of enabling, starting and stopping, emergency stopping, and limiting functions of the driver;

2 isolated output ports, programmable, output driver status and control signals;

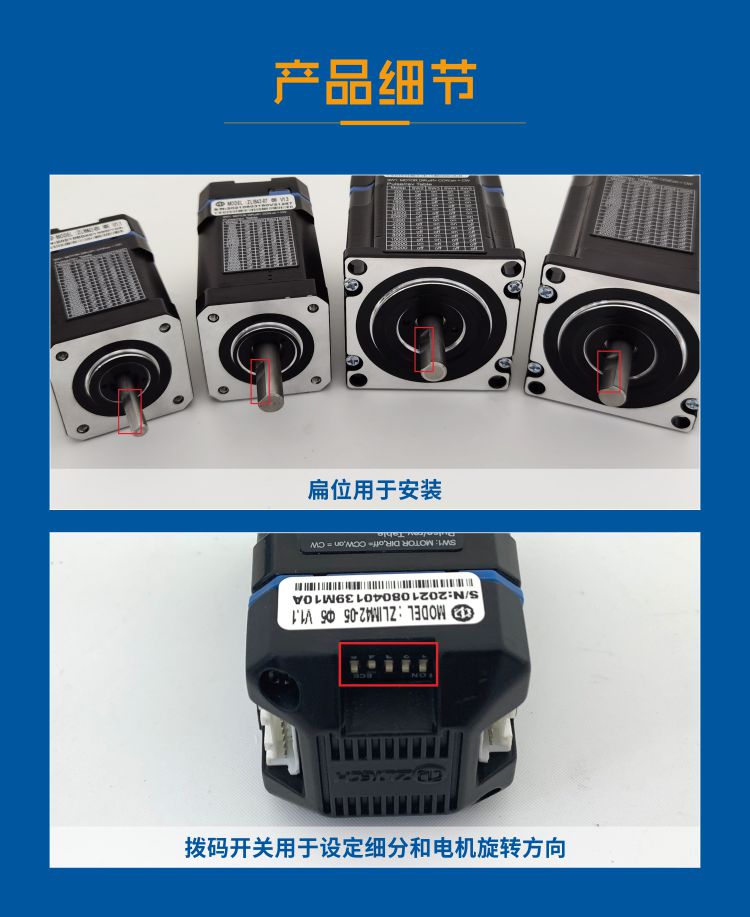

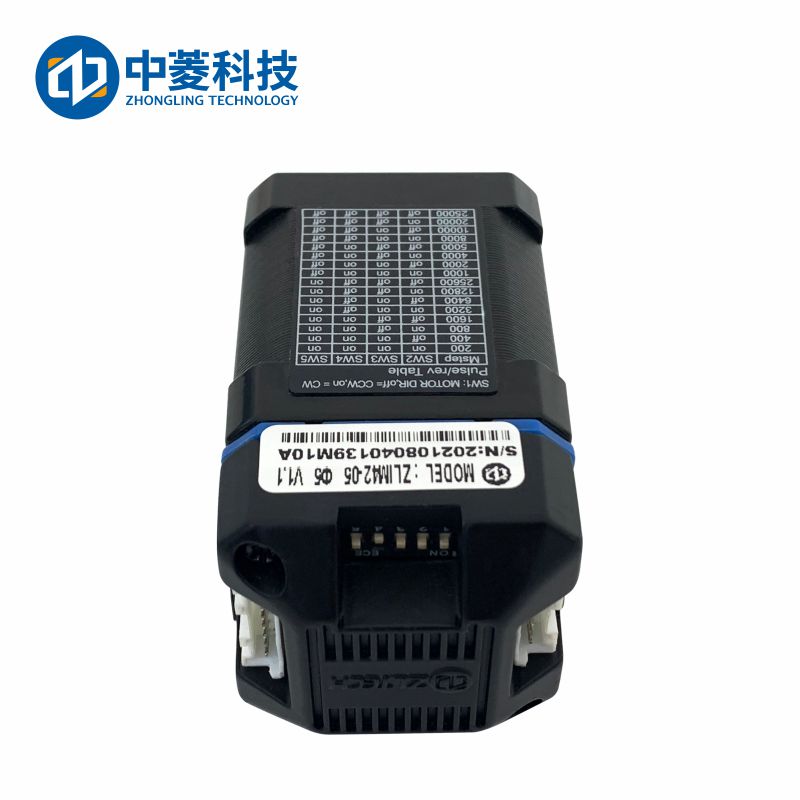

4 toggle switch selection, 16 physical addresses;

It has protection functions such as overvoltage and overcurrent.

application area

Suitable for various small automation equipment and instruments, such as pneumatic marking machines, labeling machines, cutting machines, laser marking machines, plotters, small engraving machines, CNC machine tools, handling devices, etc. The application effect is particularly good in devices with low noise, low vibration, high stability, and high precision that users expect.
